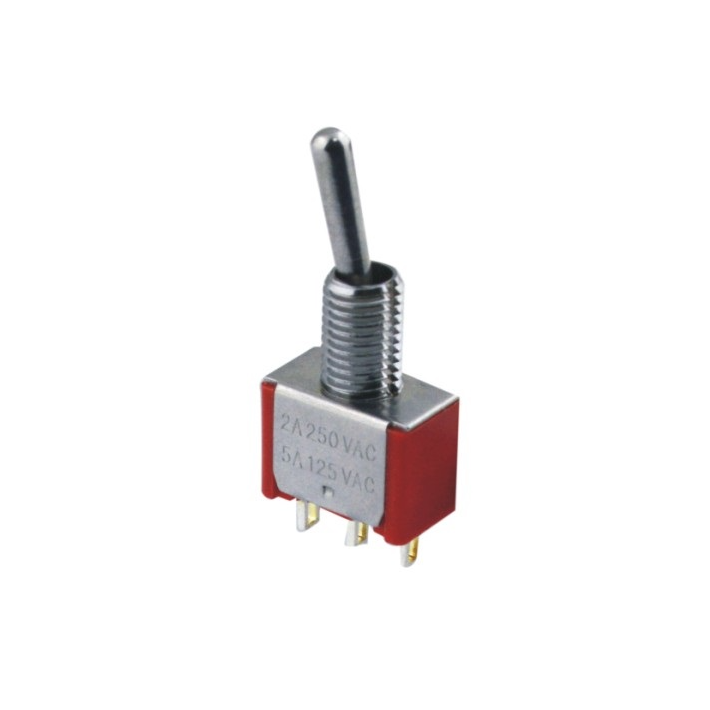

Mini Toggle Switch

SPDT Mini Toggle switch with nuts and washers included.

• 5A 125VAC; 2A 250VAC.
• Contact resistance: less than 20ohm.
• Withstand voltage: 1500VAC for 1 minute.
• Operating temperature: -25°C to +85°.
• Mechanical life: more than 40,000 cycles.
• Insulation resistance: 500VDC, 1000Mohm minimum.

Available positions:

2 Way (ON-ON) and 3 Way (ON-OFF-ON)

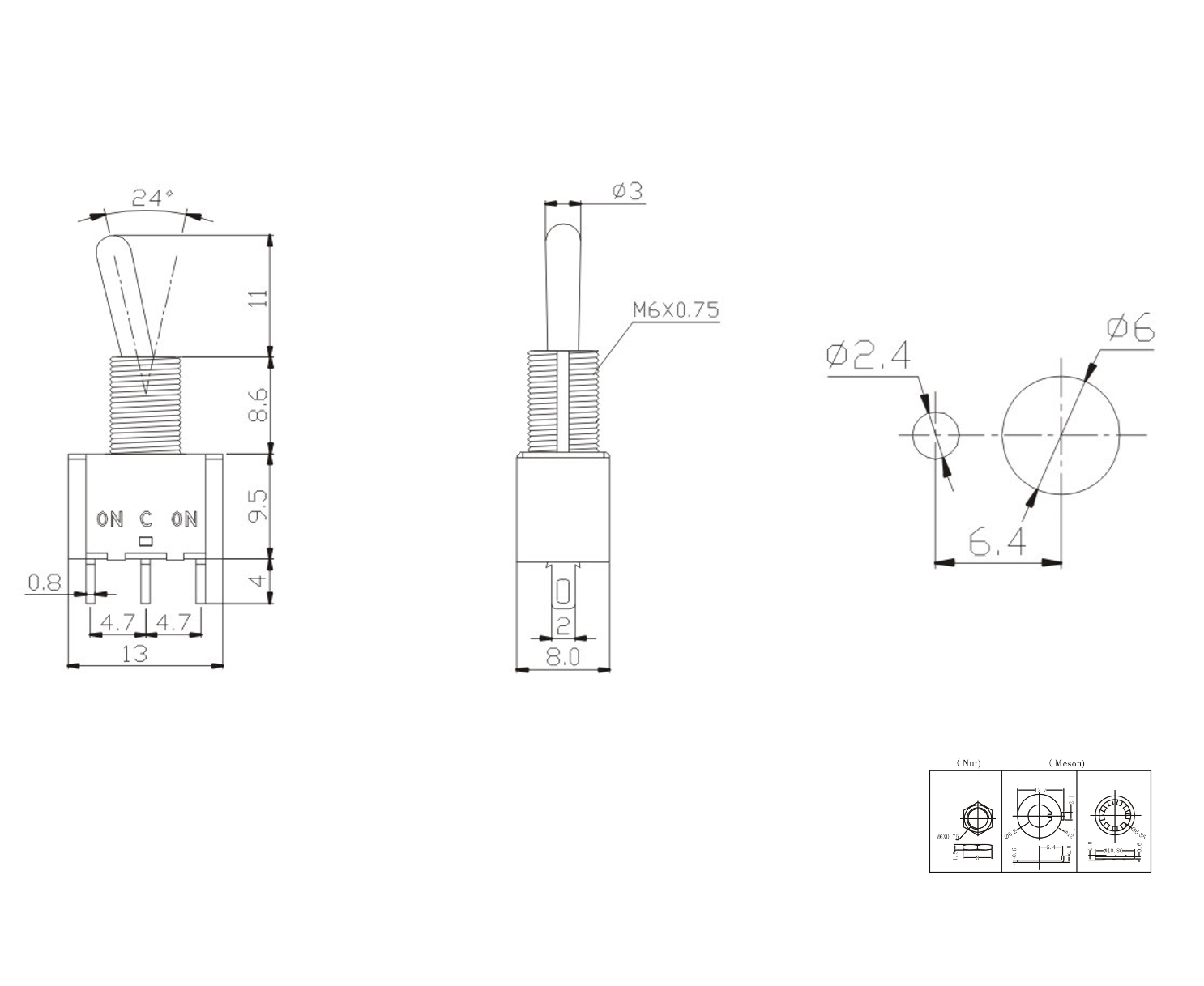

THESE ARE THE REGULAR SIZE SWITCHES. CHECK THE TECHNICAL DRAWING TO MAKE SURE YOU GOT THE RIGHT SIZE! CLICK HERE FOR THE SMALLER SUB-MINI TOGGLE SWITCHES
