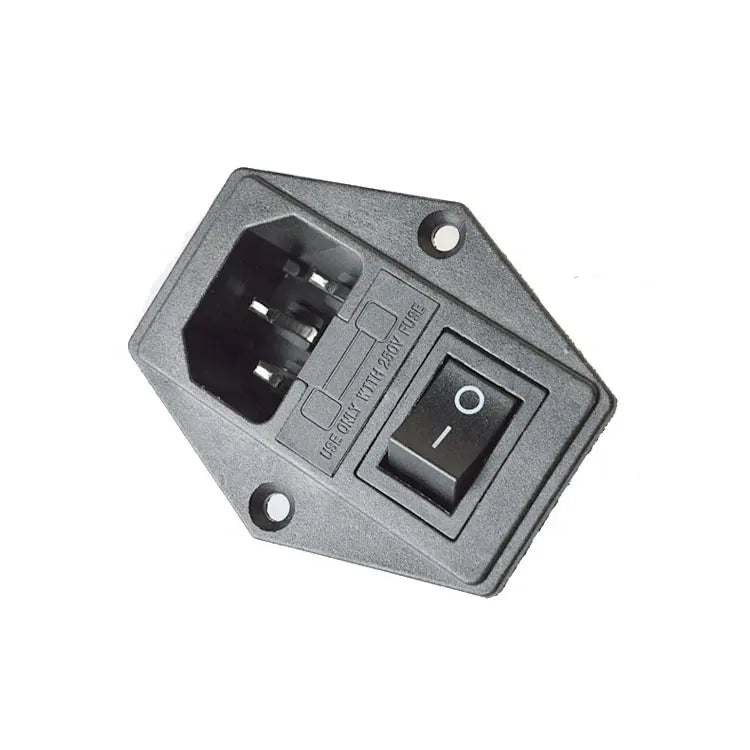

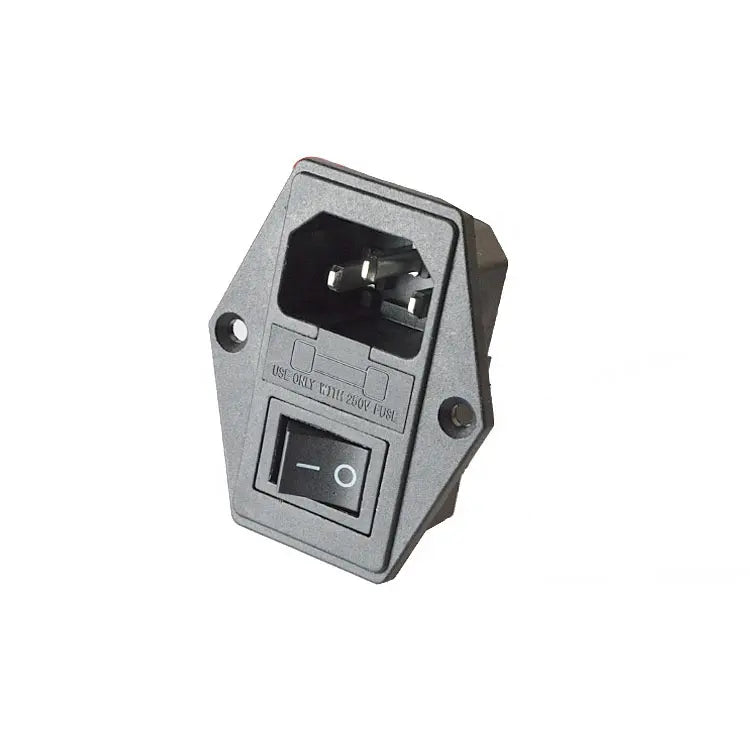

AC Power Socket

AC power socket with switch

• 10A
• 250V AC
• 3 Terminals
• Fuse Holder

Fuse not included. The fuse in the picture is only an indication. Use a slow-blow (T) fuse that fits the holder, chosen by the number of Mean Well RT-65B power supplies on this socket:

• 1 × RT-65B: T2A
• 2 × RT-65B: T3.15A
• 3 × RT-65B: T4A

Never use a fast fuse, as the switch-on surge of the power supply can blow it.

To be used with AC power cable

Wiring your case? Read our step-by-step guide: Powering Your Case: Mean Well RT-65B + Bus Boards.
